ASUS 華碩 ROG Strix GeForce RTX 3080 WHITE EDITION OC 10G 顯示卡
ASUS 華碩 現貨 限砌機

ASUS 華碩 ROG Strix GeForce RTX 3080 WHITE EDITION OC 10G 顯示卡

價格:按此查詢
貨號:
DI-E3080W1
分類:
顯示卡

對產品有疑問? 歡迎與客服 即時對話

產品描述

砌機優惠請向客服查詢

RTX3080-O10G-WHITE



ROG-STRIX-RTX3080-O10G-WHITE



ROG Strix GeForce RTX™ 3080 White Edition with a white color scheme and chart-topping thermal performance.

  • NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPU, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
  • 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
  • 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. Now with support for up to 8K resolution, these cores deliver a massive boost in game performance and all-new AI capabilities.
  • OC edition: Boost clock 1935 MHz (OC mode)/1905 MHz (Gaming mode)
  • A limited white edition for themed gaming rigs.
  • Axial-tech fan design has been tuned up with more fan blades and a reversed rotational direction for the center fan.
  • 2.9-slot design expands cooling surface area compared to last gen for more thermal headroom than ever before.
  • Super Alloy Power II includes premium alloy chokes, solid polymer capacitors, and an array of high-current power stages.
  • GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.

加入比較表



列印此頁



Overview

Fans

Fans

Heatsink

Heatsink

PCB

Design

Design

Design

Software

  •










FANS




AXIAL-TECH UPGRADES




Our Axial-tech fan design is optimized for a new, larger heatsink that features more fins and surface area than last gen. The blade count is increased on all three fans, with 13 on the center fan and 11 on the auxiliary fans. The barrier ring on the side fans is slimmed down to allow for more lateral intake and to provide better airflow through the cooling array. The center fan's extra blades and full-height ring provide boosted static pressure to blast air directly onto the GPU heat spreader.

FANS

NEW DIRECTIONS

To bolster the specialized roles of the center and auxiliary fans, the rotational direction of the center fan is reversed. This reduces air turbulence inside the cooling array for another boost to overall thermal performance. The fans also shut off completely when card power consumption is low and the GPU temperature falls beneath 50 Celsius, keeping noise levels down when the system is idling or under a light load.



HEATSINK




MAXCONTACT




To get heat up off the die and into the heatsink array, we've engaged MaxContact technology to polish the surface of the heat spreader and improve smoothness at the microscopic level. The extra flatness allows for better contact with the die for enhanced thermal transfer.

ROG Strix GeForce RTX™ 3080 White Edition
ROG Strix GeForce RTX™ 3080 White Edition
Increased Height

INCREASED HEIGHT

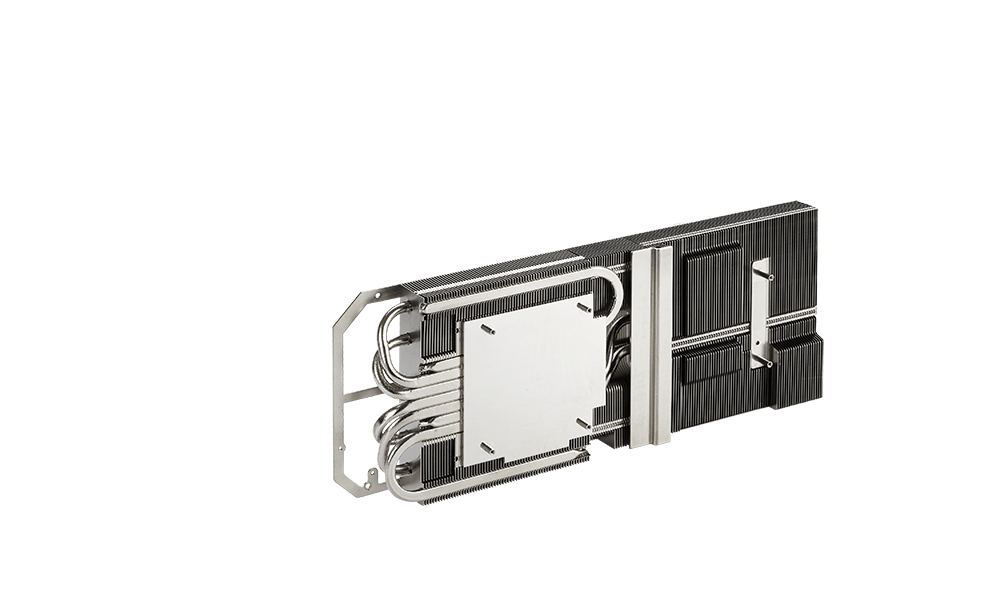

HEATSINK

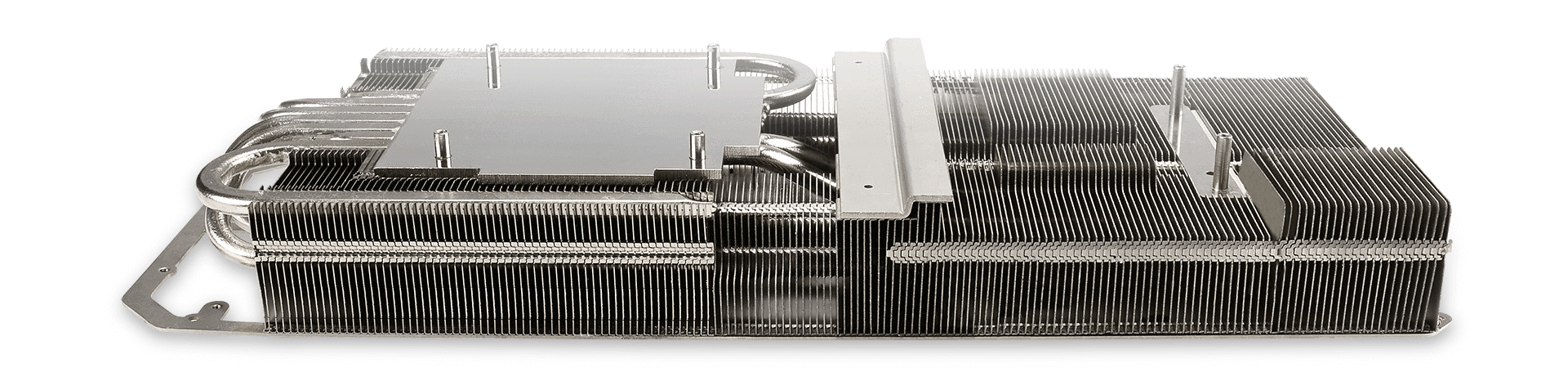

2.9-SLOT DESIGN




The heat spreader draws heat up into heatpipes that carry it through a fin stack that fills a large 2.9-slot footprint. Increasing the heatsink size compared to the last generation provides more thermal headroom to account for the new high-performance chipset.

Premium components
Premium components focused

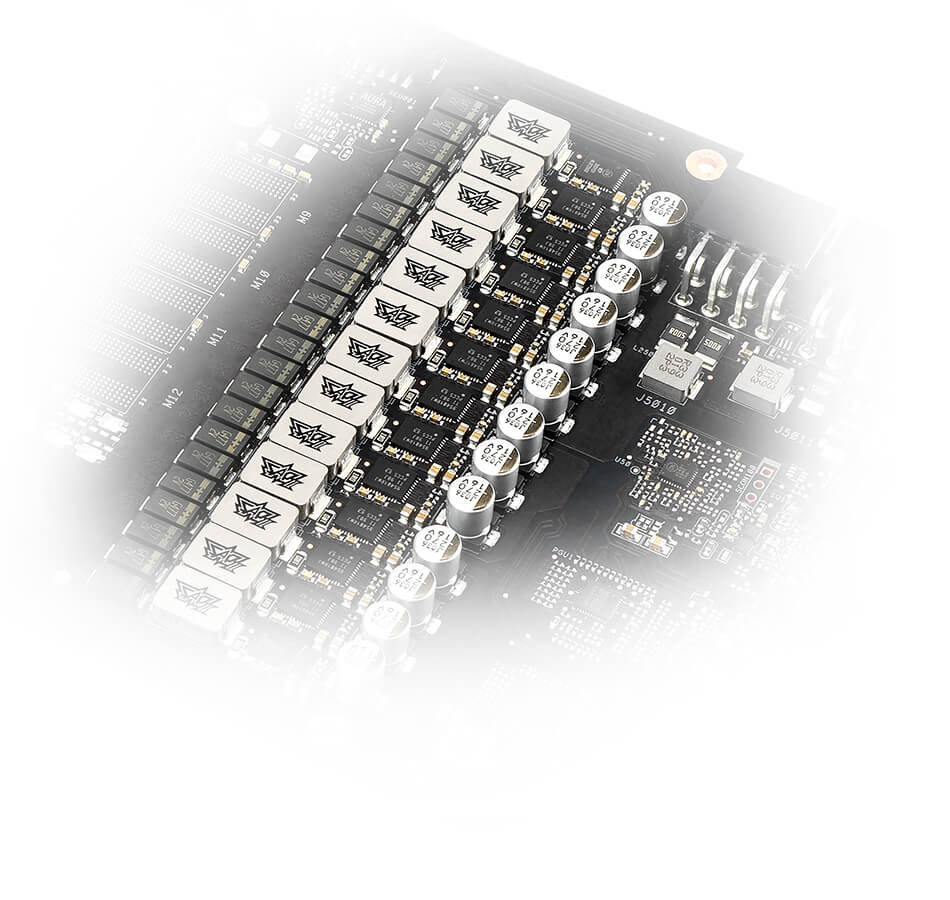

PCB




PREMIUM COMPONENTS




Top-shelf capacitors, chokes, and MOSFETs are selected to effortlessly deliver hundreds of watts at a millisecond's notice. The Super Alloy Power II parts are soldered to the PCB using our advanced Auto-Extreme automated manufacturing process. Smooth joints on the rear of the PCB and the elimination of human errors ensures each graphics card meets our rigorous specifications.

FanConnect
FanConnect focused

PCB

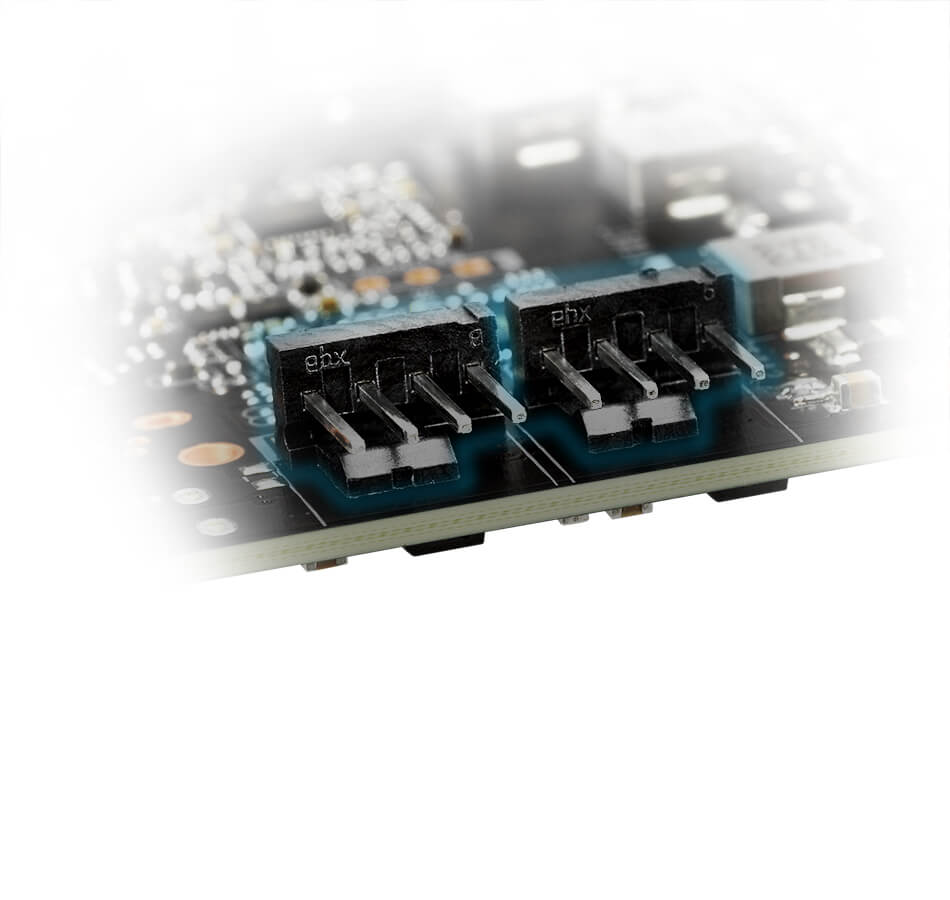

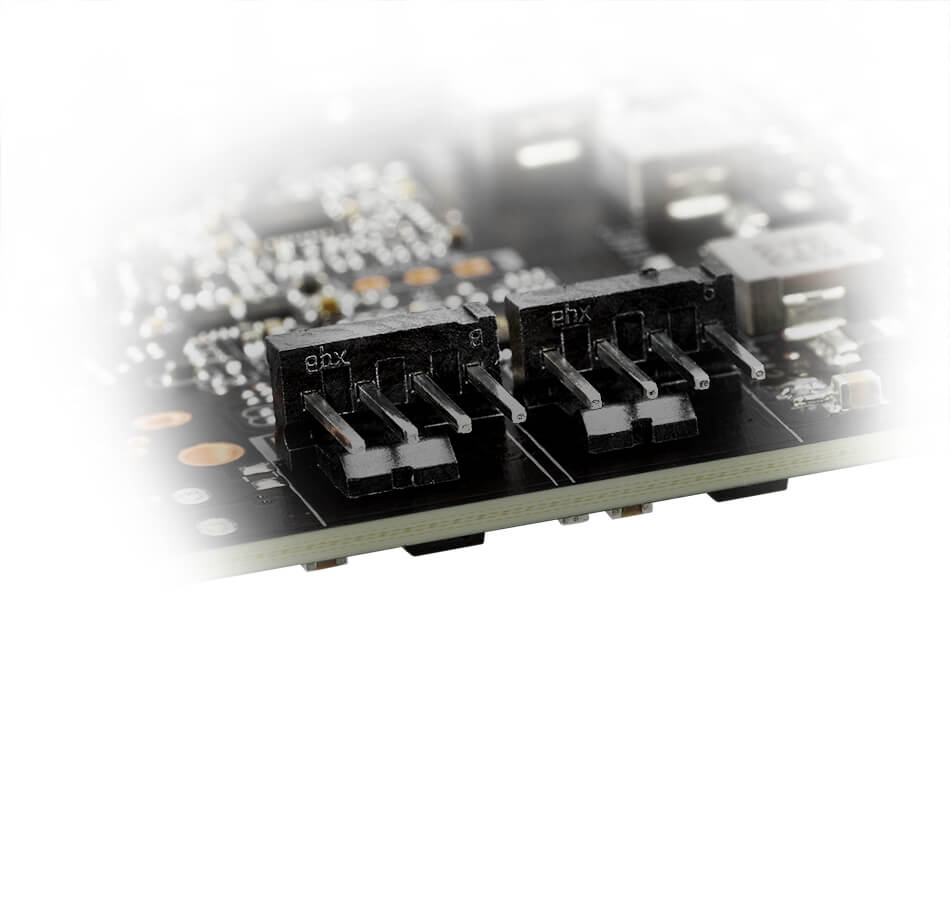

FANCONNECT II




The rear of the ROG Strix graphics card sports two PWM FanConnect headers that provide additional DIY flexibility. Chassis fans can be directly attached to the GPU and tuned with a curve that is based on CPU and GPU temperatures, providing extra intake or exhaust for demanding 3D tasks.







ROG Strix GeForce RTX™ 3080 White Edition
ROG Strix GeForce RTX™ 3080 White Edition
ROG Strix GeForce RTX™ 3080 White Edition
ROG Strix GeForce RTX™ 3080 White Edition
ROG Strix GeForce RTX™ 3080 White Edition

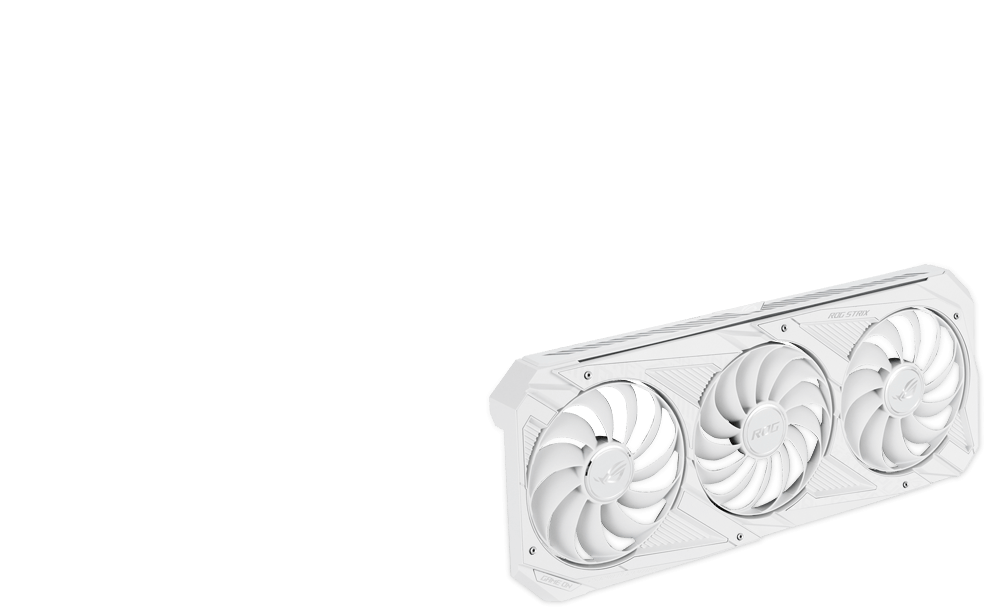

DESIGN

WHITE EDITION

The shroud, fans, metal accents, and backplate are carefully color matched to give the Strix an aesthetic tailored for ice-white builds.

* Images for Illustration only

ROG Strix GeForce RTX™ 3080 White Edition
Stainless Steel I/O Bracket
Dual BIOS
GPU Bracket
Vented Backplate

Stainless Steel I/O Bracket

Dual BIOS

GPU Bracket

Vented Backplate

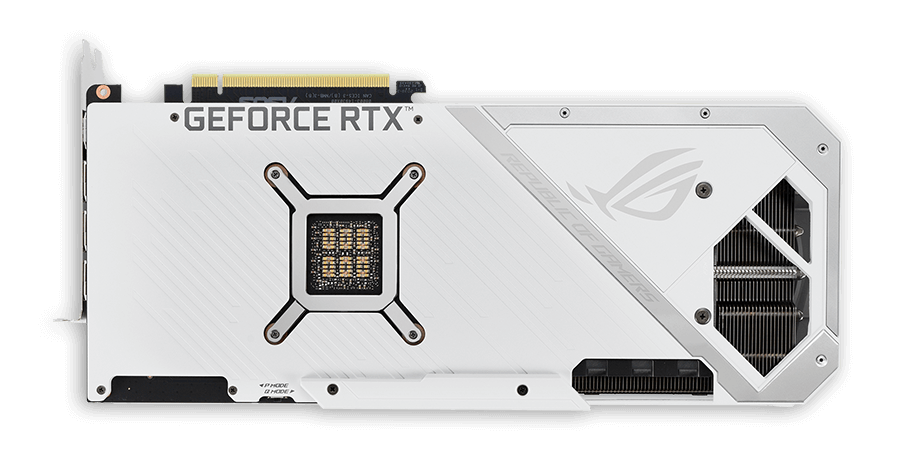

DESIGN

IT'S COOLER OUT BACK

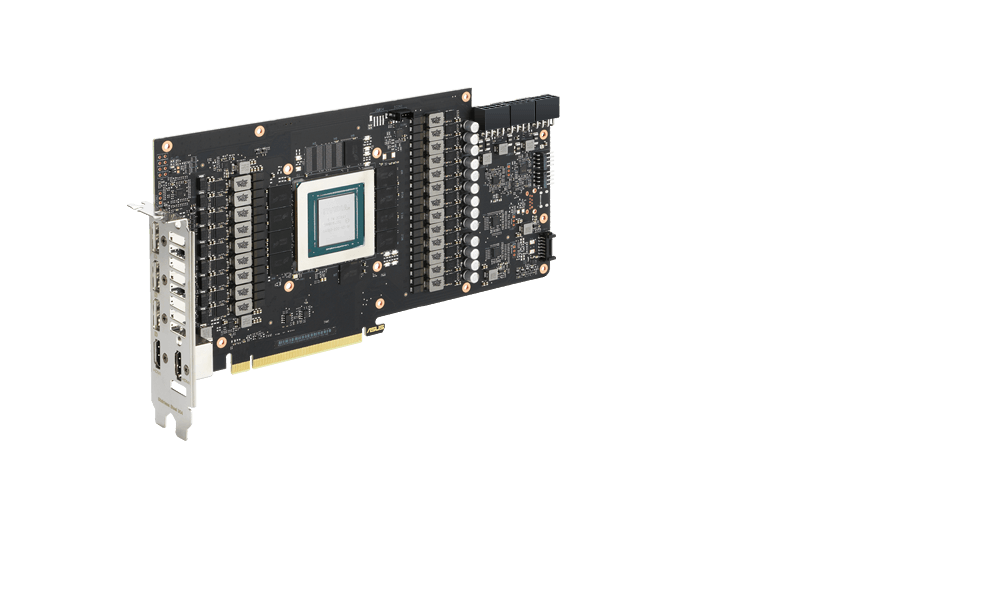

Flipping the card around reveals more design improvements. A wide backplate vent and shortened PCB allows hot air to escape towards chassis exhaust fans instead of being recycled by the GPU's circulating cooler design. A GPU bracket provides extra stability to the critical connection between die and heat spreader. The I/O bracket is made from stainless steel to protect ports and provide a more secure mount. A conveniently placed Dual Bios switch allows quick selection between “performance” and “quiet” mode for basic customization of the card's default behavior without software.



ROG Strix GeForce RTX™ 3080 White Edition

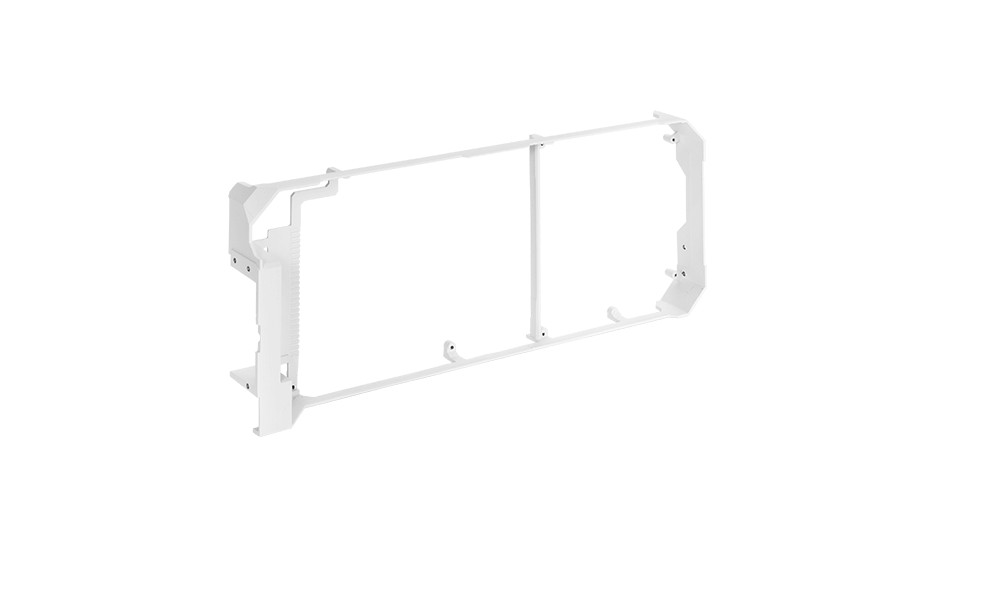

ROG Strix GeForce RTX™ 3080 White Edition Reinforced Frame

Reinforced Frame

Reinforced Frame

Reinforced Frame

DESIGN

FUNCTIONAL FRONT

Careful attention has been paid to the front of the GPU, as it's the most visible part of the card in typical configurations. An addressable RGB element can be customized with Armoury Crate to create a uniform look along with other ROG components. To fulfill the power demands of the GeForce RTX 3080, three 8-pin power connectors are present, along with an onboard circuit that monitors PSU rail voltage. The circuit is fast enough to catch any transients that result in the rail voltage dropping too low. If that happens, a red LED will light up to indicate a power supply issue. The Strix's reinforced metal frame is also visible here, adding a literal layer of durability.

CHOOSE COLOR



SELECT MODE

  •
  •
  •
  •
  •
  •
  •
  •

Static

SOFTWARE

GPU TWEAK II

The ASUS GPU Tweak II utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.

UI of GPU Tweak II
wtfast

We've partnered with wtfast to help you to play free from lag, latency issues, and lost packets. With a 6-month subscription to the wtfast Gamers Private Network, you'll enjoy lower ping for a smoother, more fluid online gaming experience. Buy an ASUS graphics card - and don't be left waiting!

XSplit | Gamecaster

XSplit offers a premium streaming experience with in-game annotations and other advanced features. Enjoy a free license with the purchase of select ASUS graphics cards. See you online!

QuantumCloud

Quantumcloud is a simple and secure service that lets you effortlessly earn extra money by putting your idle GPU to work. Earnings are automatically transferred to your WeChat or PayPal account, and your privacy remains intact because Quantumcloud doesn't collect your personal data. Get started making money today!

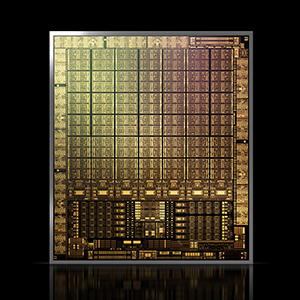

NVIDIA AMPERE ARCHITECTURE

NVIDIA AMPERE ARCHITECTURE




The all-new NVIDIA Ampere architecture delivers the ultimate play, featuring advanced 2nd generation Ray Tracing Cores and 3rd generation Tensor Cores with greater throughput.

RTX. IT'S ON.

RTX. IT'S ON.




Experience today's biggest blockbusters like never before with the visual fidelity of real-time ray tracing and the ultimate performance of AI-powered DLSS.

DLSS AI ACCELERATION

DLSS AI ACCELERATION




NVIDIA DLSS is groundbreaking AI rendering that boosts frame rates with uncompromised image quality using the dedicated AI processing Tensor Cores on GeForce RTX. This gives you the performance headroom to crank up settings and resolutions for an incredible visual experience. The AI revolution has come to gaming.

VICTORY MEASURED IN MILLISECONDS

VICTORY MEASURED IN MILLISECONDS




NVIDIA Reflex delivers the ultimate competitive advantage. The lowest latency. The best responsiveness. Powered by GeForce RTX 30 Series GPUs and NVIDIA® G-SYNC® monitors. Acquire targets faster, react quicker, and increase aim precision through a revolutionary suite of technologies to measure and optimize system latency for competitive games.

UP YOUR CREATIVE GAME

UP YOUR CREATIVE GAME




Take your creative projects to a new level with GeForce RTX 30 Series GPUs. Delivering AI-acceleration in top creative apps. Backed by the NVIDIA Studio platform of dedicated drivers and exclusive tools. And built to perform in record time. Whether you're rendering complex 3D scenes, editing 8K video, or livestreaming with the best encoding and image quality, GeForce RTX GPUs give you the performance to create your best.

STREAM LIKE A BOSS

STREAM LIKE A BOSS




Steal the show with incredible graphics and smooth, stutter-free live streaming. Next-generation hardware encoding and decoding combine to show off all your best moments in exquisite detail. And the all-new NVIDIA Broadcast app gives you powerful AI capabilities to improve audio and video quality with effects like virtual background, webcam auto frame, and microphone noise removal. So you can give your audience your best—every time.

DIRECTX 12 ULTIMATE

DIRECTX 12 ULTIMATE




Developers can now add even more amazing graphics effects to Microsoft Windows-based PC games. GeForce RTX graphics cards deliver advanced DX12 features like ray tracing and variable rate shading, bringing games to life with ultra-realistic visual effects and faster frame rates.
