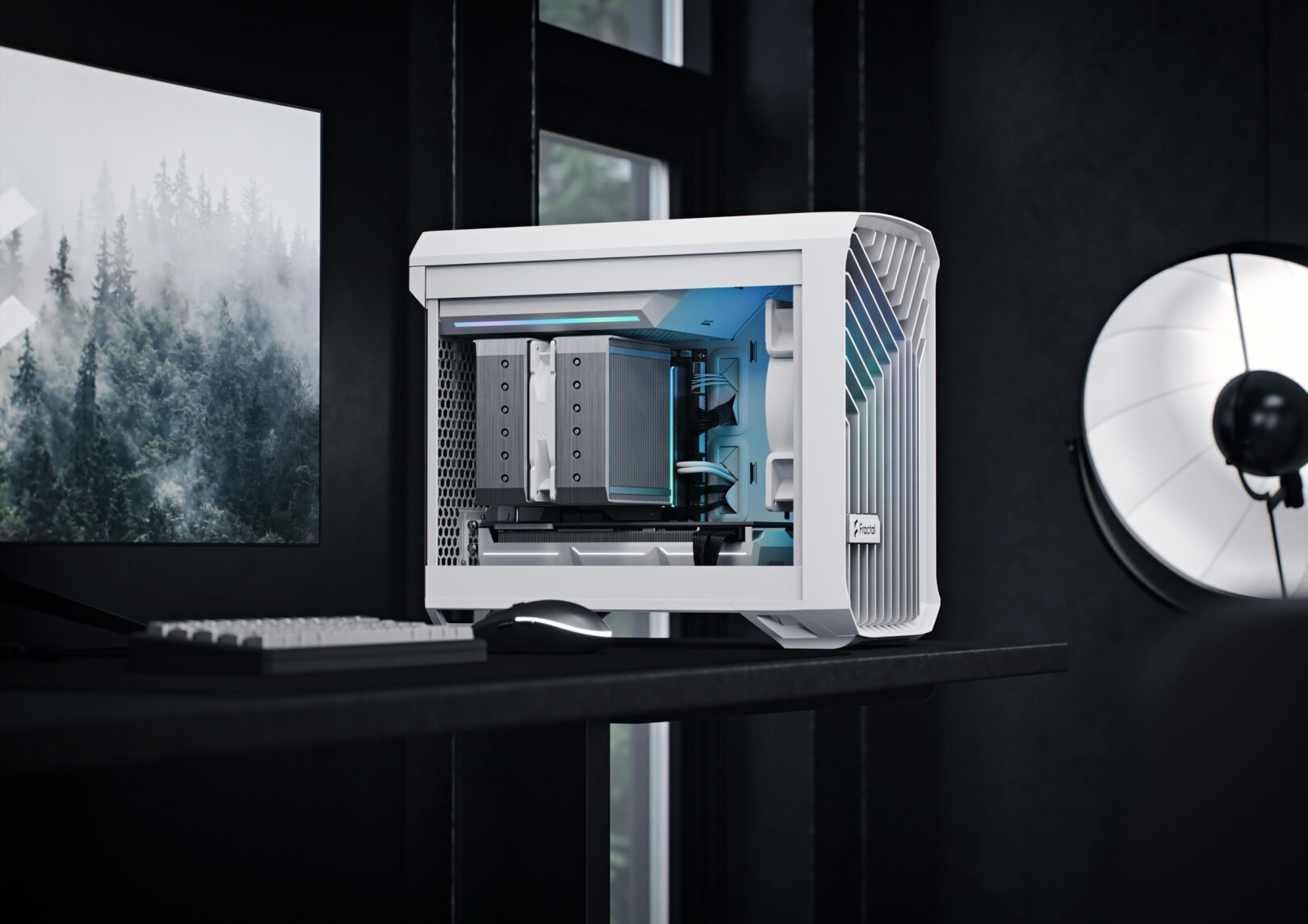

Torrent Nano

The Torrent Nano is built to maximize cooling potential straight out of the box. Main standouts include an unobstructed base intake, an open front grille and one of our 180 x 38 mm Dynamic PWM fans (Prisma for RGB version) custom-made to achieve maximum air cooling while maintaining controlled noise levels.

• Open grille and 180 mm front fan optimized for maximum air intake
• Fractal Design 180 x 38 mm fan leverages power, size, and thickness for massive air-moving capacity
• Space optimized, yet still capable of handling up to 3-slot thick 335 mm long GPUs

Streamlined airflow

Top-tier airflow

• The included Fractal Design 180 x 38 mm fan leverages power, size, and thickness for massive air-moving capacity
• Front fan brackets allow for unblocked airflow to the larger fan while catering to standard radiator sizes
• Dust filters for front and bottom easily accessible by removing the front

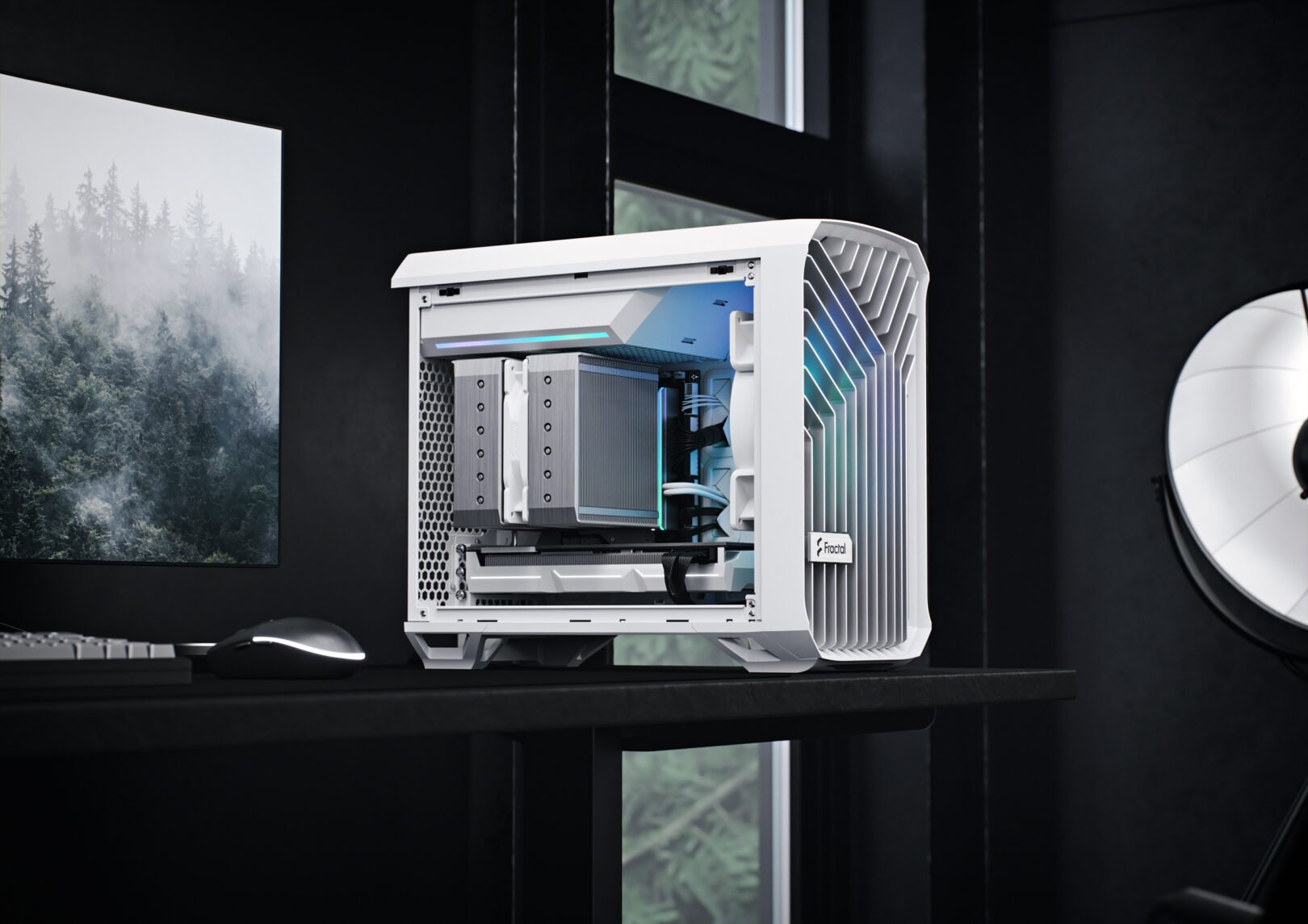

Streamlined inside and out

Open interior and a top mounted PSU provides plenty of breathing room for components

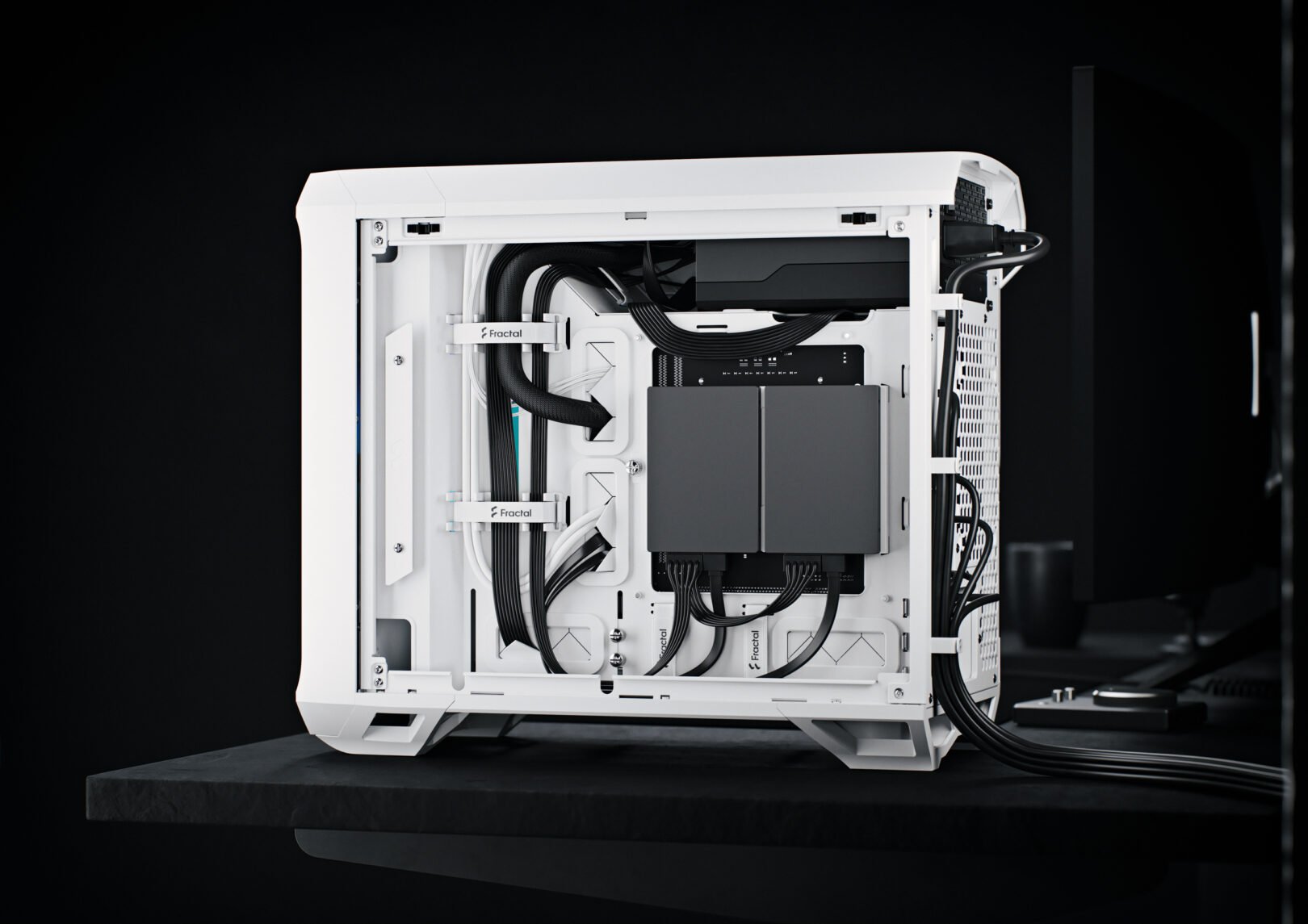

Quick start, clean finish

• Removable top bezel and routing clips with cable ties make for easy installation and cable management
• A sturdy, vibration-damped drive tray supporting a single HDD or dual SSDs with two optional mounting positions
• A dedicated SSD bracket with room for 2x 2.5” drives included

Transparently easy

• Seamless tempered glass panels (TG versions) with bolt-free top-latching mechanisms for easy handling
• Top mounted aerodynamic PSU shroud with integrated ARGB effects (ARGB strip only available on TG and RGB versions)
• LED lights (TG versions) and RGB fans (RGB version) are fully controllable through motherboards supporting addressable RGB (5V)

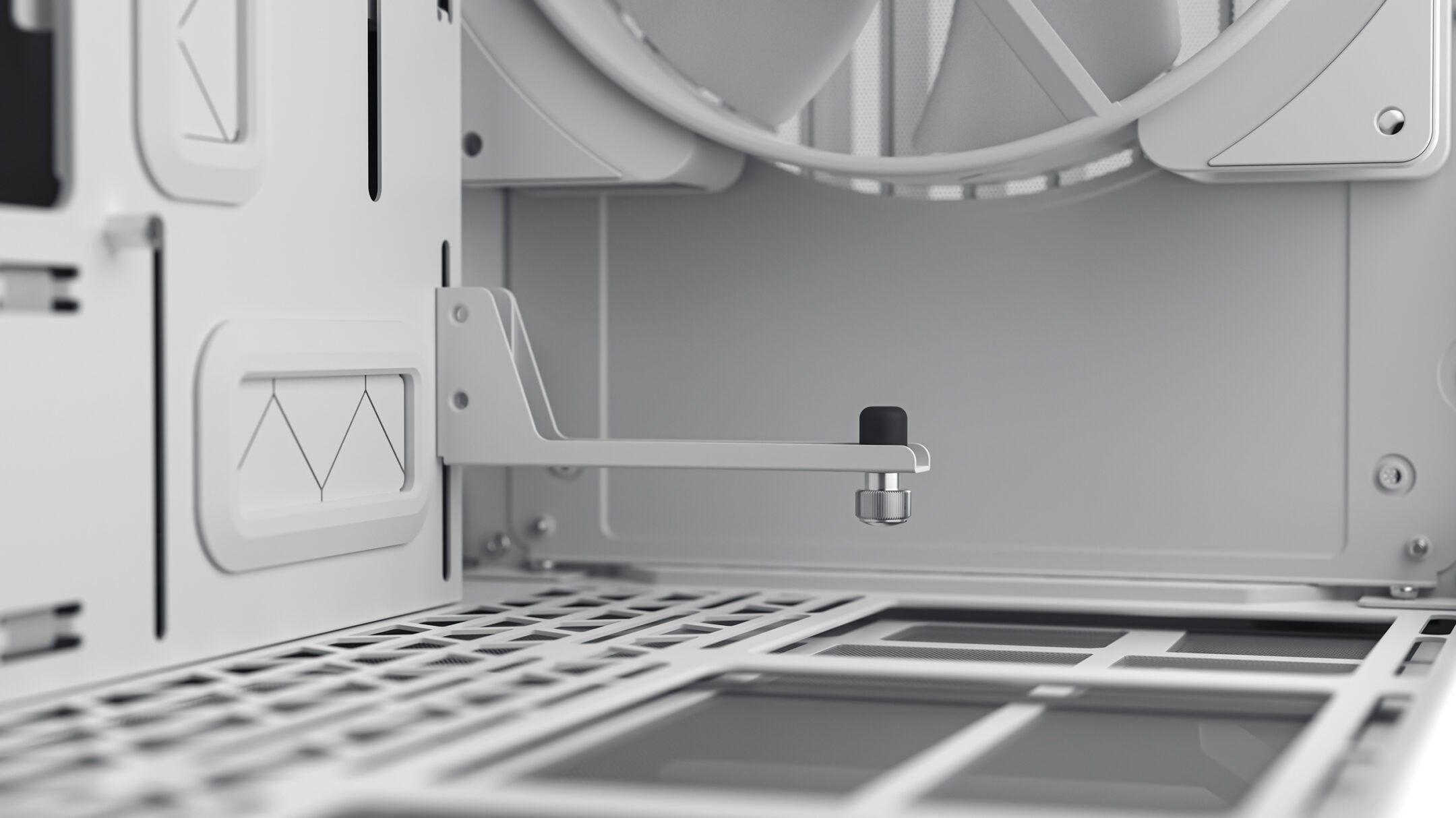

Included GPU support bracket

Helps your GPU stay level (user assembled, instructions included)

With flexibility in focus

• Space optimized, yet still capable of handling up to 3-slot thick 335 mm long GPUs
• Integrated support for a water-cooling reservoir on the motherboard tray
• Comes with included GPU support bracket that helps your GPU stay level

Specifications

• 3.5"/2.5" drive mounts
• 1 (included)
• Dedicated 2.5" drive mounts
• 2 (included)
• Expansion slots
• 3
• Front interface
• 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio
• Total fan mounts
• 1x 180 mm, 4x 140 mm, or 5x 120 mm (with included brackets)
• Front fan
• 1x 180 mm or 2x 140/120 mm (with included bracket) (1x Dynamic GP-18 included in standard versions, 1x Prisma AL-18 included in RGB version)
• Dust filters
• Front, Bottom
• Fixed cable straps
• Yes
• Cable routing grommets
• Yes
• Tool-less push-to-lock
• Side panels
• Captive thumbscrews
• HDD and SSD brackets
• Left side panel
• Steel or Tempered glass (RGB version: Tempered glass only)
• Right side panel
• Steel or Tempered glass (RGB version: Tempered glass only)

Compatibility

• Motherboard compatibility
• mITX / mDTX
• Power supply type
• ATX
• PSU max length
• 200 mm
• GPU max length
• 335 mm with front fan mounted
• CPU cooler max height
• 165 mm
• Rear fan
• 1x 120 mm (not included)
• Bottom fan
• 2x 140/120 mm (not included)
• Front radiator
• Up to 240/140 mm
• Rear radiator
• 120 mm
• Bottom radiator
• Up to 240/280 mm
• Cable routing space
• 29 mm

Dimensions

• Case dimensions (LxWxH)
• 417 x 222 x 374 mm
• Net weight
• BK TGD/TGL: 6.0 kg, WT TGC: 5.8 kg, BK Solid: 5.5 kg
• Package dimensions (LxWxH)
• 446 x 300 x 538 mm
• Gross weight
• BK TGD/TGL: 7.8 kg, WT TGC: 7.5 kg, BK Solid: 7.2 kg
