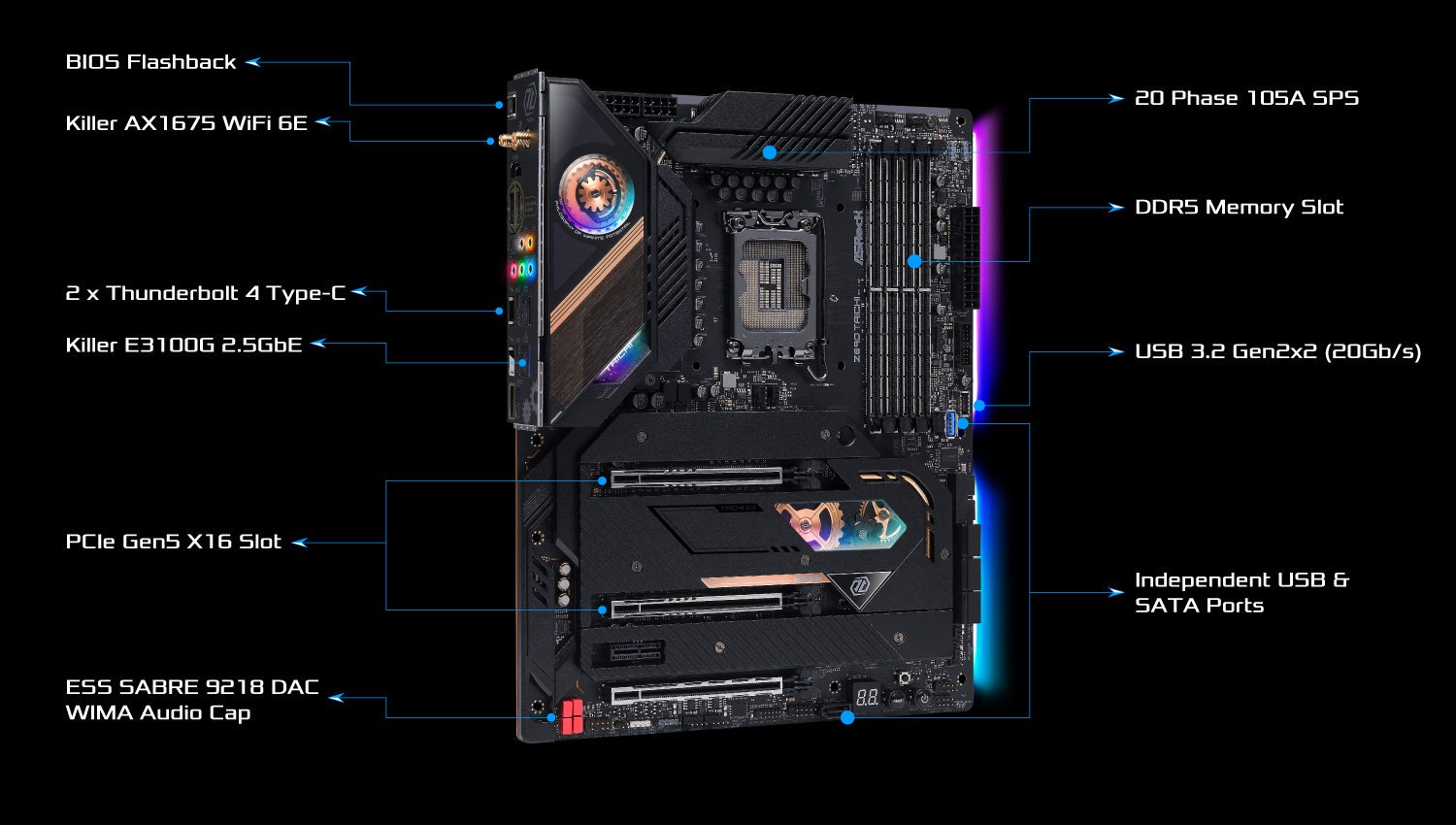

Z690 Taichi
Peak of innovation
產品特色
- Supports 12th Gen Intel® Core™ Processors (LGA1700)
- 20 Phase SPS Dr.MOS Power Design
- Supports DDR5 6400MHz (OC)
- 2 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
- Graphics Output Options: HDMI, 2 Thunderbolt™ Type-C
- Realtek ALC1220 7.1 CH HD Audio Codec, ESS SABRE 9218 DAC, WIMA Audio Caps
- 6 SATA3, 1 Independent SATA3
- 2 Hyper M.2 (PCIe Gen4 x4)
- 1 M.2 (PCIe Gen3 x2 & SATA3)
- 2 Thunderbolt™ 4/USB4 Type-C
- 1 USB 3.2 Gen2x2 Front Type-C
- 2 Rear USB 3.2 Gen2 Type A
- 8 USB 3.2 Gen1 (4 Rear, 4 Front)
- 1 Independent USB 3.2 Gen1 Type A Port
技術規格:
CPU | Supports 12th Gen Intel® Core™ Processors (LGA1700 |
Chipset | - Intel® Z690 |
Memory | Dual Channel DDR5 Memory Technology |
LAN | 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Killer E3100G) |
Wireless LAN | 802.11ax Wi-Fi 6E Module |
Slots | - 3 x PCIe x16 Slots (PCIE1/PCIE2/PCIE4: single at Gen5x16 (PCIE1); dual at Gen5x8 (PCIE1) / Gen5x8 (PCIE2); triple at Gen5x8 (PCIE1) / Gen5x8 (PCIE2) / Gen4x4 (PCIE4))* |
Storage | - 6 x SATA3 6.0 Gb/s Connectors |
Rear Panel I/O | - 2 x Antenna Ports |
- 1 x HDMI Port | |
- 1 x Optical SPDIF Out Port | |
- 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (ReDriver) (Supports ESD Protection) | |
- 2 x USB 4.0 Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB 4.0 protocol; 40Gb/s for Thunderbolt™ protocol) (Supports ESD Protection)* | |
- 4 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)** | |
- 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) | |
- 1 x BIOS Flashback Button | |
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks with LED) |
